Catégorie : Securité

Required

• 1 Local area network
• 2 hosts one running Kali Linux (attacker) and one running Ubuntu 22.04(Snort IDS)
• TCP/IP communication between hosts needs to be established before-hand
• Clock and Date settings must be configured correctly

TCP/IP addressing table

Subnet name	IPv4 range
Virtual Network 2 (Vmnet2)	192.168.200.0/24

Node	IPv4 Address
Kali Linux , the attacker	eth0 LAN 192.168.200.145/24
UbuntuServer, Snort IDS	ens33 LAN 192.168.200.148/24

Snort installation and analysis

• From UbuntuServer open a Terminal window
  1. Type sudo su –

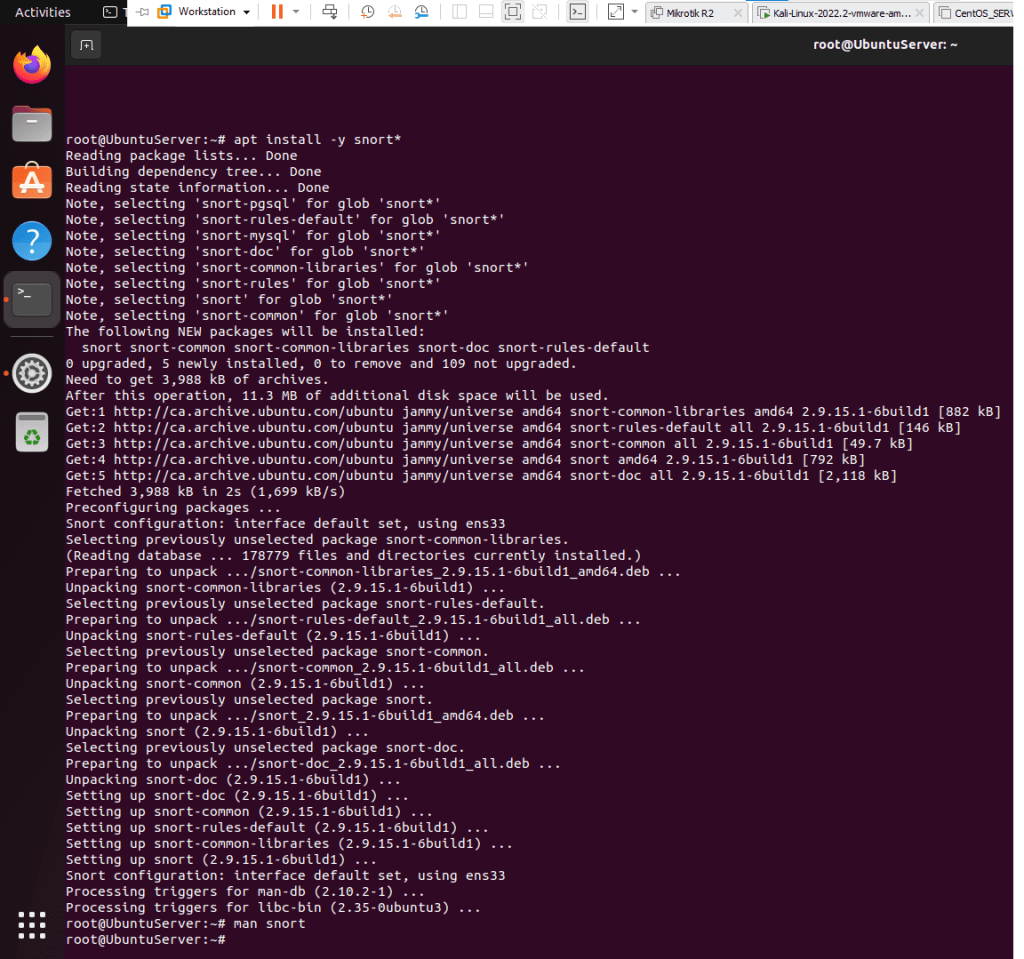

  2. Type apt install -y snort*

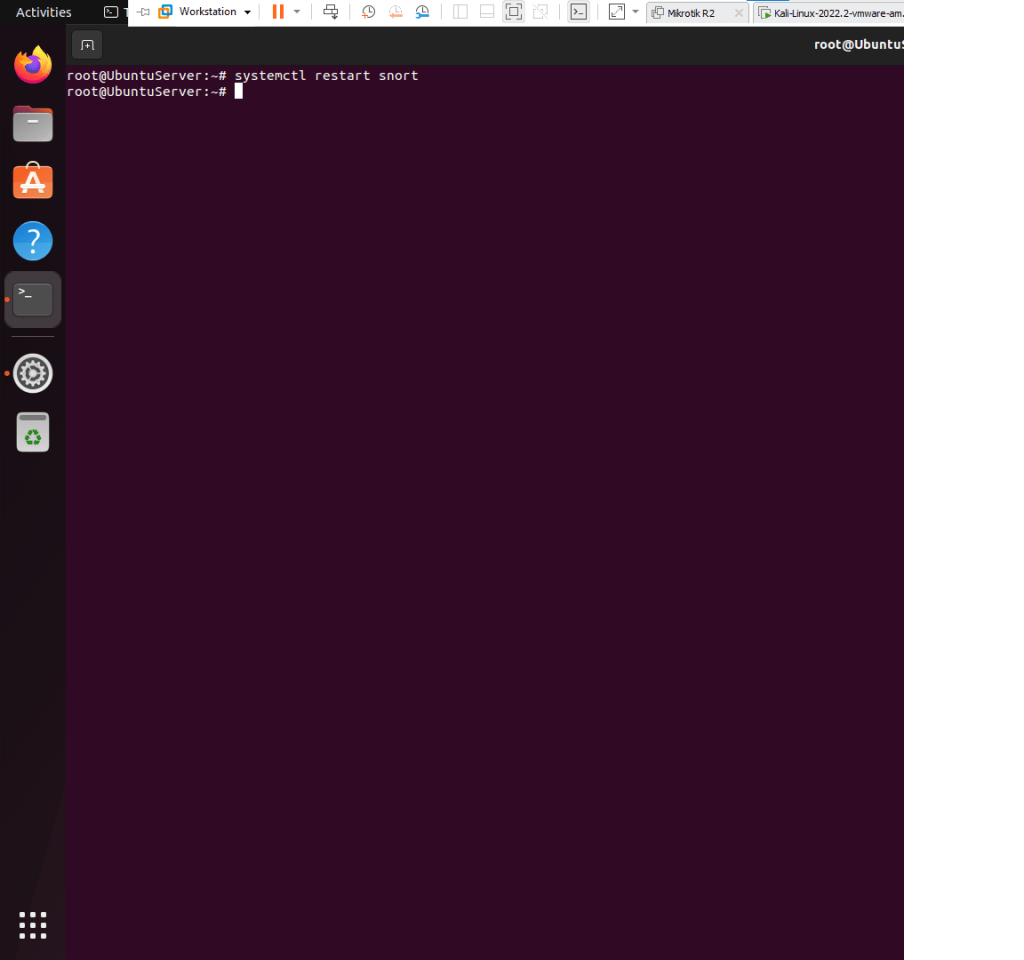

  1. Type systemctl restart snort , no error should happen
  2. Type systemctl status snort, must be active
  3. Type snort -D -A -i ens33 -c /etc/snort/snort.conf
• Here are the following options explained
  1. -D , runs the IDS in daemon, it frees the terminal , you can close it without interrupting your analysis
  2. -A snort runs in alert mode
  3. -i sniff packets on this interface
  4. -c config file location

XMAS attack analysis

• From Kali open a Terminal window
  1. Type sudo su –

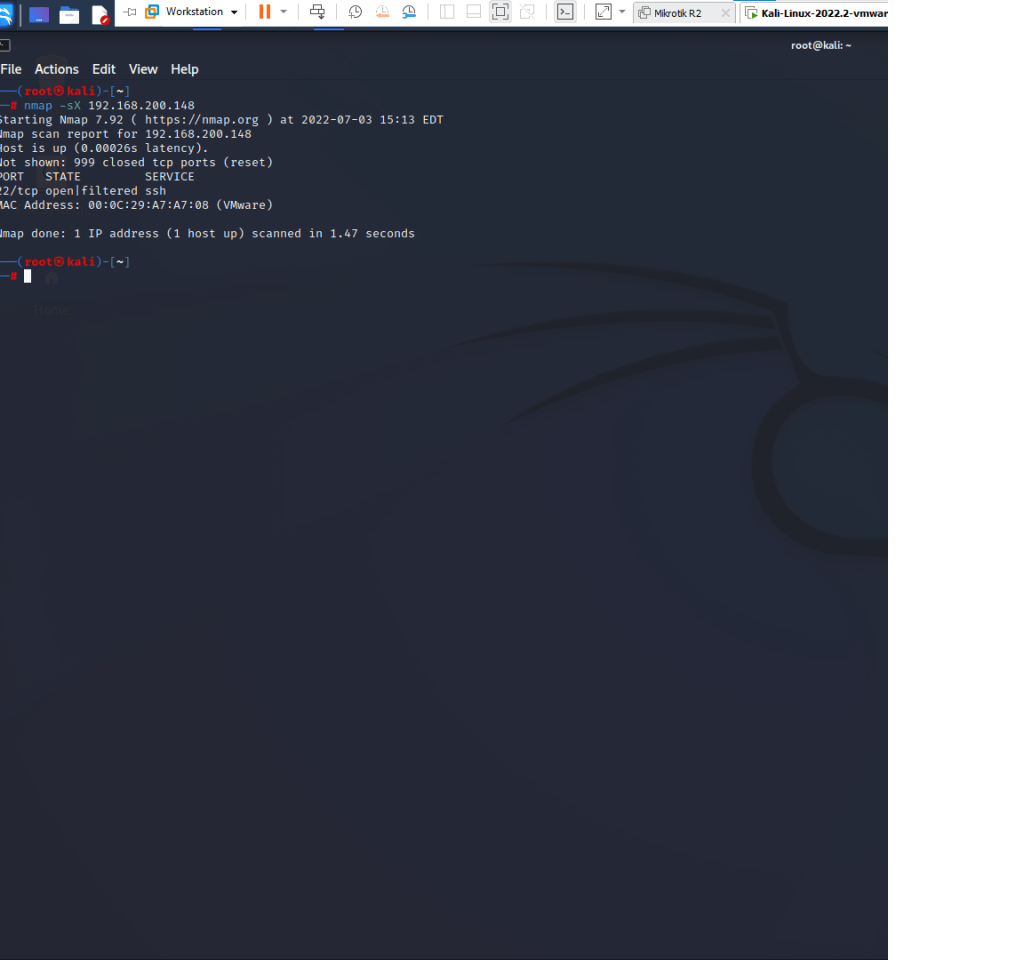

  2. Type nmap -sX 192.168.200.148
• -sX is a XMAS scan technique
• From UbuntuServer, open a Terminal

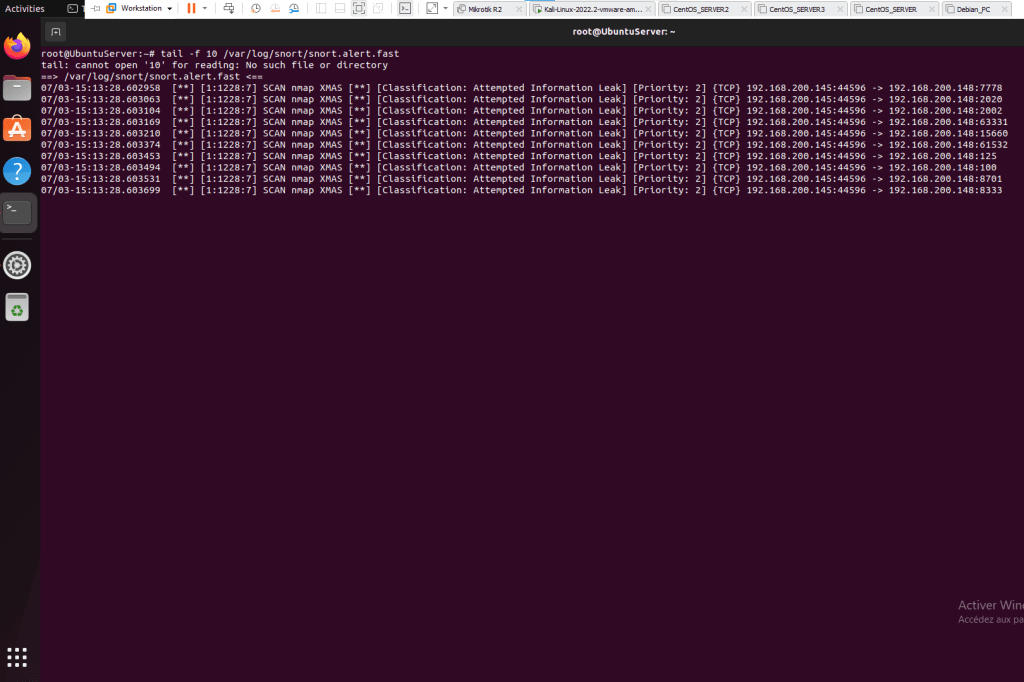

  1. Type tail -f 10 /var/log/snort/snort.alert.fast
  2. You can clearly see the discovery of the XMAS attack on the Snort Intrusion Detection System
